TPN Vertical Distribution Board (MCB/MCCB INCOMER)

Description

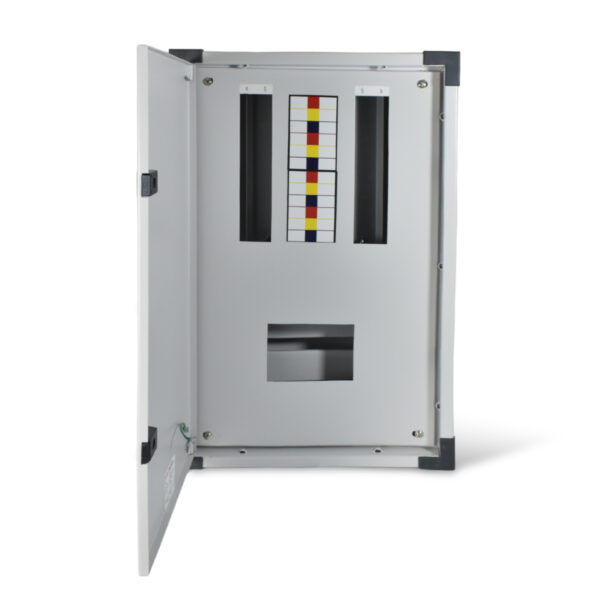

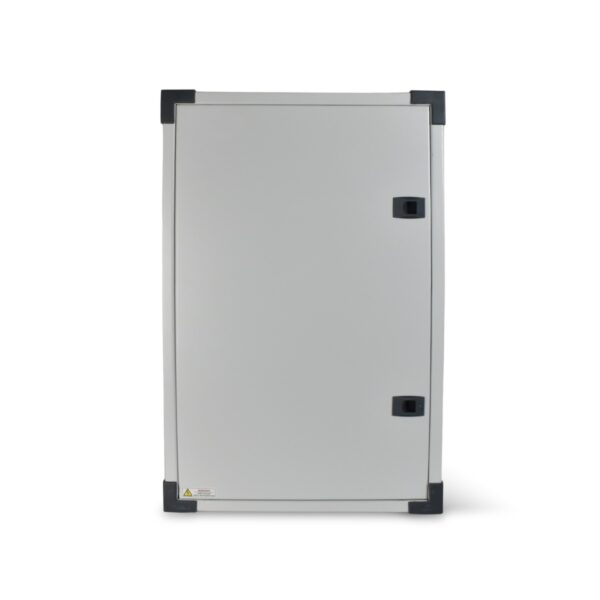

TPN Vertical Distribution Board (MCB/MCCB Incomer)
Designed for safe and efficient three-phase power distribution, TPN Vertical DB is engineered to support both MCB and MCCB as incomers, making it ideal for industrial and commercial electrical systems.

It features a universal mounting design and is supplied fully equipped with a 100A copper insulated busbar, neutral link, earth link, earthing studs, and all necessary interconnection wires. With 8 dedicated slots for incomers, the DB allows for seamless integration of TP, TPN, or FP MCBs or TP/FP MCCBs as the main incoming device.

The board also accommodates multiple SP or TP MCBs for outgoing circuits and includes detachable gland plates with knockouts on both sides, ensuring flexible cable management and simplified installation.

Key Features:

Conforms to IS13032 & IS8623 (Part 3) standards
Suitable for TP / TPN / FP MCBs or TP / FP MCCBs as incomers
Supports SP / TP MCBs for outgoing circuits
Busbar Rating: 100A copper insulated
Equipped with neutral link, earth link, and earthing studs
Detachable gland plates on both sides with knockouts
Flexible usage for both single-phase and three-phase outgoing systems
Universal mounting for easy and secure installation

Technical Specifications:

Specification	Details
No. of Ways	4, 6, 8 & 12 Ways
Type of Installation	Surface & Flush Mounting
Colour / Finish	RAL 7035 Grey (Semi Glossy)
Door Options	Reversible
Door Locking Options	Sliding Lock
Removable Gland Plates	Top & Bottom
Protection Level	Advanced
Distribution Technique	Insulated Busbar
Bus Bar Rating	63A
Incoming	Max. 63A
Outgoing	Max. Individual 63A (SP & TP)
Provision for Incomer Slots	8 Slots
Voltage Rating	240/415V~ AC, 3 Phase/4 Wire
Main Incoming Options	Three Phase MCB or RCCB or Isolator
Sub Incoming Options	SP or TP or Both MCB
Neutral Bar Terminal Capacity	25 mm² (Split on Both Sides)
Earthing Bar Terminal Capacity	25 mm² (Split on Both Sides)
Ingress Protection (IP)	IP43
Rated Insulated Voltage (Ui)	690V~
Frequency	50Hz
Dielectric Strength	2.5KV
Ambient Temperature	-5° C to 40° C
Reference Standards	IS 8623; IS 13032
