MCCBs ENCLOSURES

Description

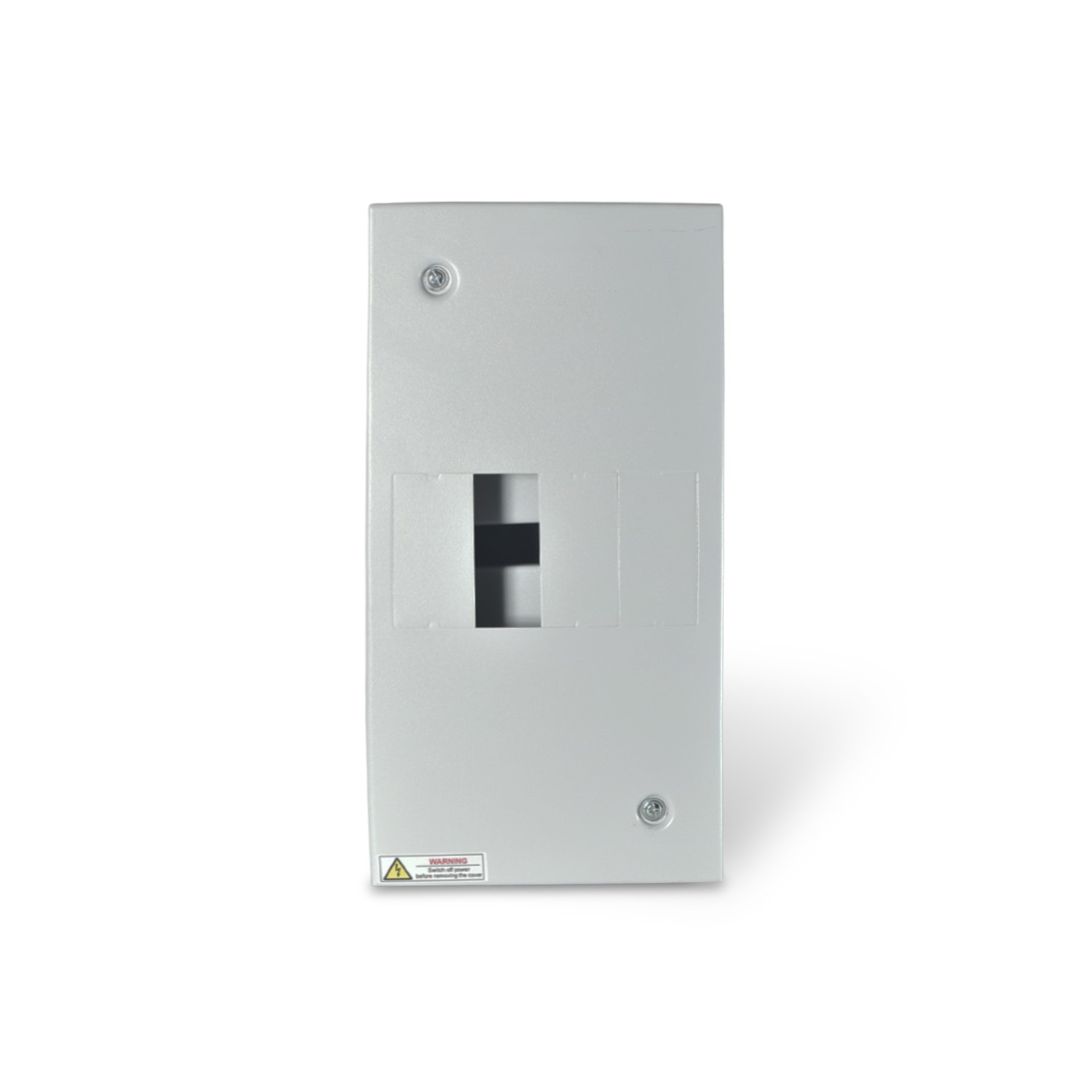

IP 30 Series MCCB Enclosures – S1 / S2 / S3 / S4 (Up to 400A)

IP 30-rated MCCB Enclosures are designed to offer maximum compatibility and installation flexibility for MCCBs up to 100A, 160A, 250A, and 400A, across the S1 to S4 series. These enclosures are ideal for industrial and commercial applications that demand secure, efficient, and brand-flexible MCCB housing.

Each enclosure is equipped with a universal mounting plate, which is adjustable both vertically and horizontally—ensuring support for almost all leading MCCB brands. Additionally, cover cutouts are provided to accommodate Single Pole (SP), Triple Pole (TP), and Four Pole (FP) MCCBs, giving electricians the flexibility to configure as required.

Model	Suitable for MCCB Rating	Features
IP 30 – S1	Up to 100A	Universal mounting plate – compatible with all major MCCB brands Adjustable plate – vertical and horizontal alignment Removable top & bottom gland plates with Ø26 & Ø32 mm knockouts Pre-cut cover slots for SP / TP / FP MCCBs Sturdy IP30 rated enclosure for indoor use
IP 30 – S2	Up to 160A
IP 30 – S3	Up to 250A
IP 30 – S4	Up to 400A
