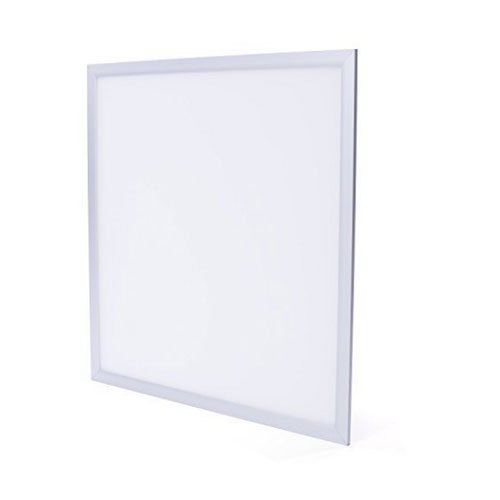

Downlighter 2X2 PANEL

Upgrade your lighting with energy-efficient 2×2 LED flat panel lights—ideal for commercial spaces, offering bright, even illumination and a sleek, modern design.

Category:

Description

Our 2×2 LED Flat Panel Downlighter offers a modern solution to outdated fluorescent ceiling lights. Designed for commercial, office, retail, educational, and healthcare environments, this fixture combines a slim, low-profile design with powerful and uniform LED illumination.

These panels fit perfectly into standard 2×2 grid ceilings, delivering shadow-free, glare-free light across the entire area. With a high lumen output and superior energy efficiency, they’re a cost-effective lighting upgrade that improves both ambiance and visibility.

Key Features:

  • Sleek Flat Panel Design – Seamlessly integrates into standard 2×2 grid ceilings.

  • Energy Saving – Significantly lower power consumption compared to fluorescent fixtures.

  • Uniform Light Distribution – No dark spots or flickering, ensuring comfortable, clear lighting.

  • Long-Lasting Performance – Built with high-quality LED chips for extended operational life.

  • Low Maintenance – Durable construction with minimal need for replacements or repairs.

  • Ideal for Commercial Use – Perfect for offices, hospitals, retail stores, schools, and more.

Make the switch to modern lighting with our 2×2 LED panels and enjoy reduced energy bills, better light quality, and a cleaner ceiling aesthetic.

2×2 LED Panel Light – Specifications (36W / 40W)
GENERAL SPECIFICATIONS
Length 595 mm
Width 595 mm
Thickness / Depth 32 mm
Weight 1300 gms
Base Aluminium
Print Details Ref: Buyer’s Specs.
ELECTRICAL PARAMETERS
Driver Type Isolated Driver (HPF)
Input Power 40W ± 10%
Input Voltage 100V – 305V
Input Current 180 mA ± 5%
Power Factor >0.90
Driver Efficiency 90%
Output Current (DC) 650 – 700 mA
Output Voltage (DC) 55V – 60V
Operating Frequency 50Hz
Surge Protection 4KV Surge
OPTICAL
LED Type SMD LED (2835) 1W / 9V
LED Make BMTC / Everstar
LED Lumen (lm/W) >100
LED Driving Current 60 mA ± 10%
System Luminous Flux 4400 lumens ± 10%
Luminaire Efficacy 110 lm/W ± 10%
Color Temperature 6500K / 4000K / 3000K
CRI (Color Rendering Index) >80
Life Span >50,000 hours
Luminaire Angle >120°
ENVIRONMENTAL
Working Temp. Range 10°C to +45°C
Working Humidity 0 – 90%
Storage Temp. 20°C to +60°C
Storage Humidity 5 – 95%
MECHANICAL
IP Grade IP20
Base Aluminium
Diffuser / Glass PC
Glass Thickness 0.88 mm
Horizontal/Vertical Rotation Angle 90°
