Description

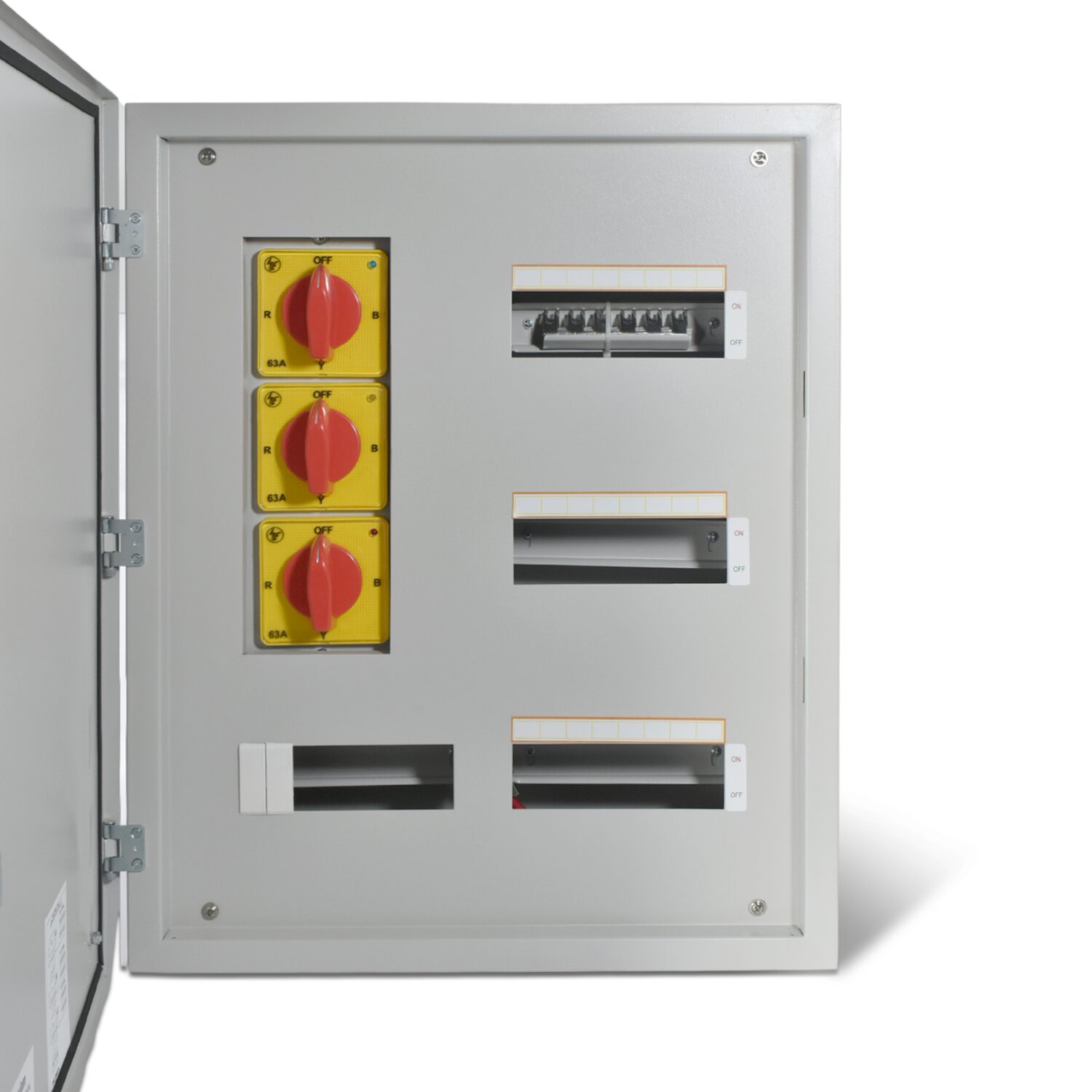

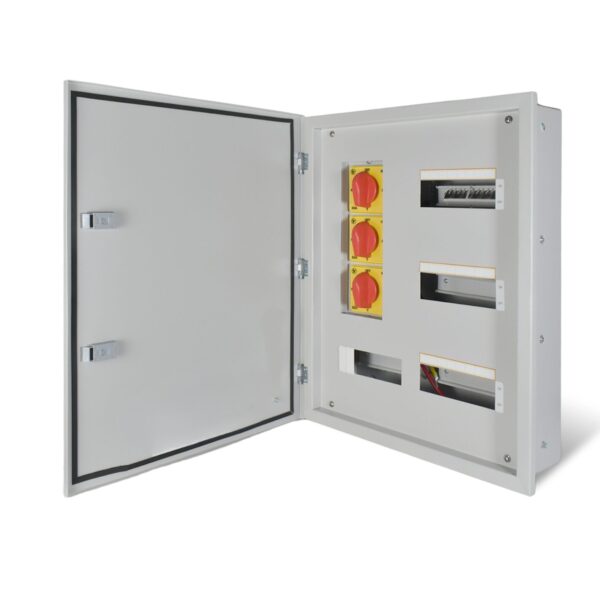

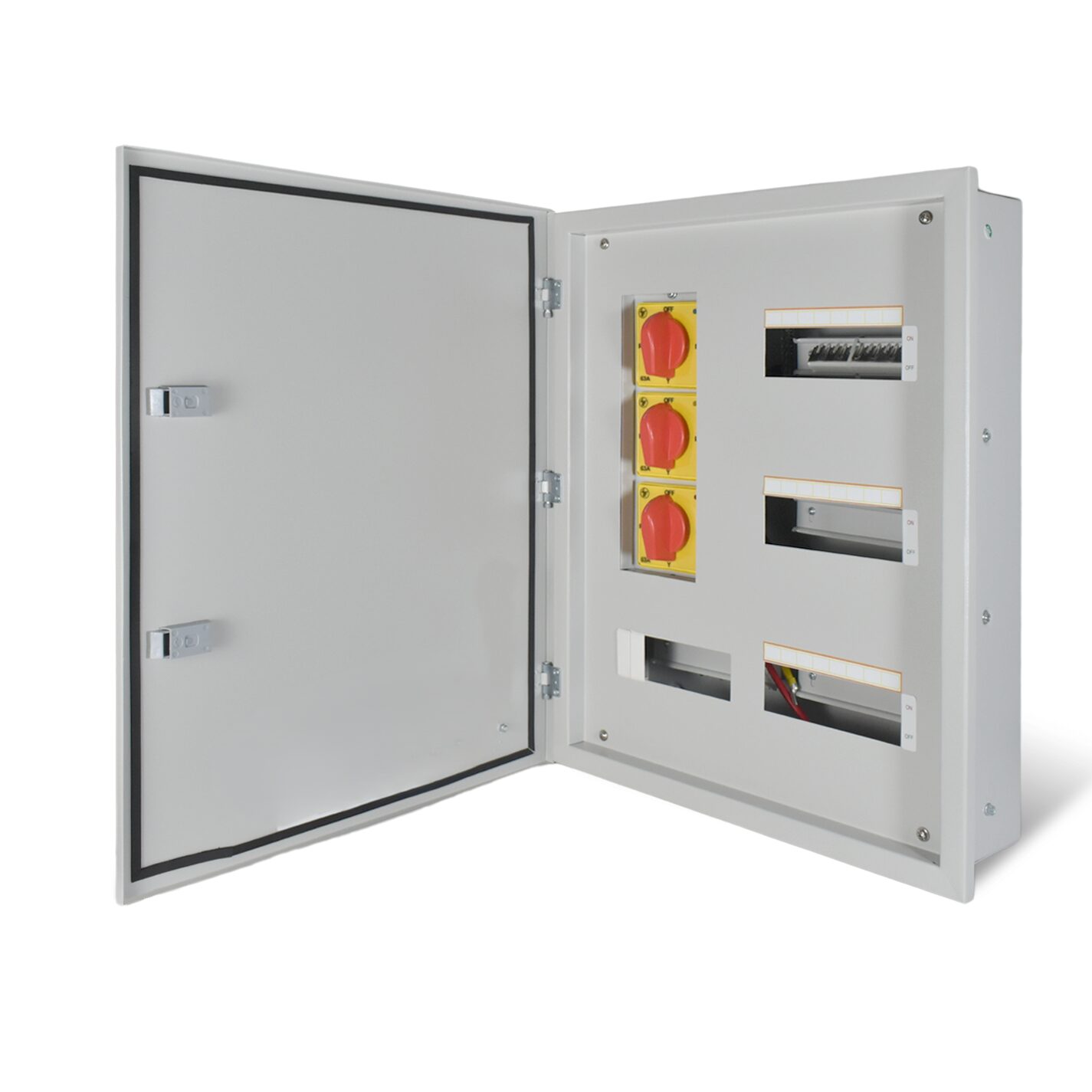

This vertical-type Phase Selector Distribution Board is designed for efficient power management in multi-phase supply systems. It features a dedicated compartment for MCBs and a separate chamber for phase selector switches, allowing for organized wiring and simplified maintenance.
The unit is compatible with 240/415V, 50Hz systems and includes a provision for a 4P incomer, making it ideal for phase selection and load distribution in residential, commercial, and small industrial applications.
Key Features:
-
Vertical DB design optimizes wall space
-
Separate compartments for MCBs and phase selector switchgear
-
Compatible with 240/415V, 50Hz power supply
-
Provision for 4 Pole Incomer
-
Spacious interior for easy wiring and heat dissipation
-
Ideal for multi-phase load management in homes and commercial setups
Technical Specifications:
| Specification | Details |
|---|---|
| No. of Ways | 4, 6, 8 & 12 Ways |
| Rotary Switch Rating | 40A & 63A |
| Type of Installation | Flush / Surface |
| Colour / Finish | RAL 7035 Grey (Semi Glossy) |

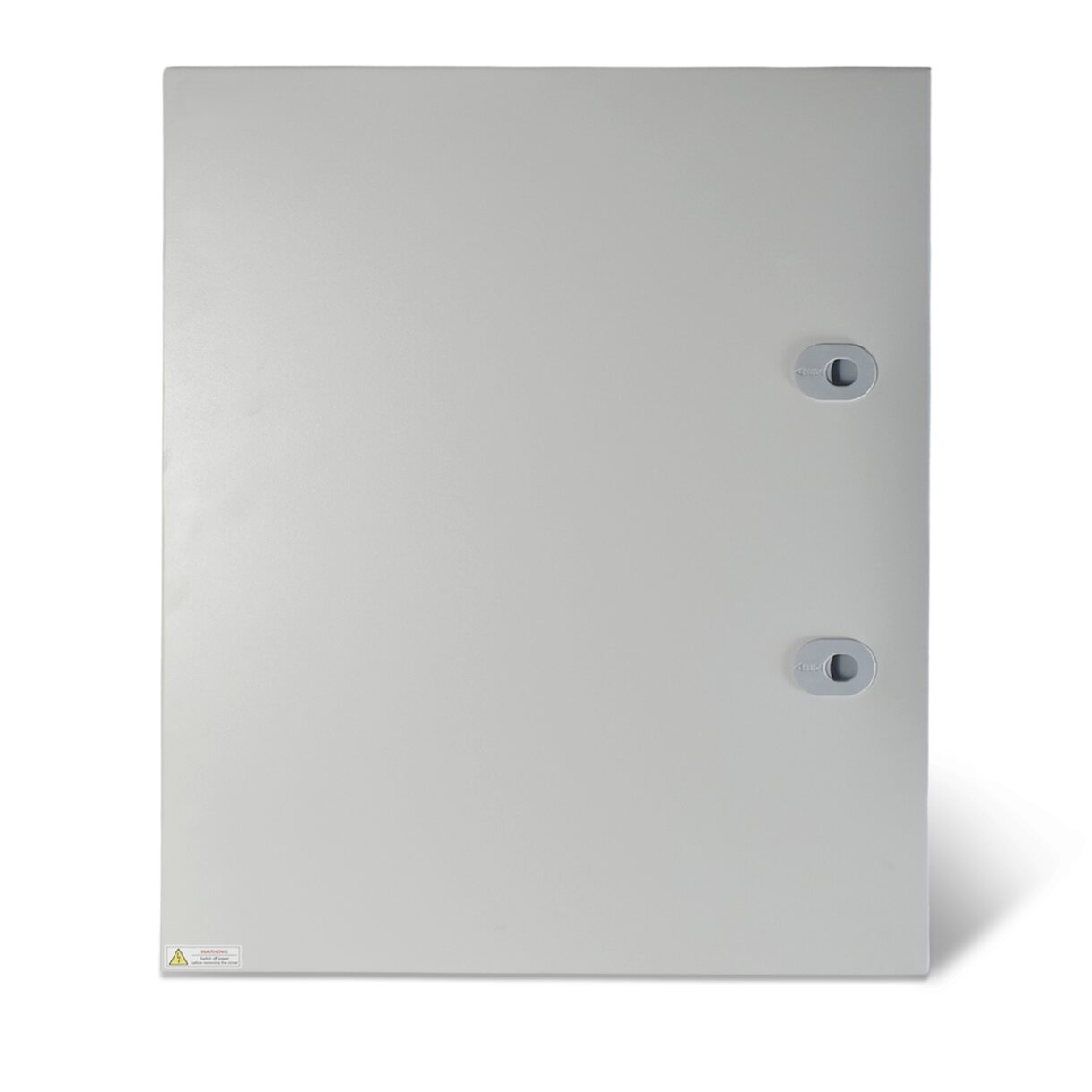

| Door Options | Reversible |
| Door Locking Options | Sliding Lock |
| Removable Gland Plates | Top & Bottom |
| Protection Level | Advanced |
| Distribution Technique | Insulated Busbar |
| Bus Bar Rating | 63A |
| Incoming | Max. 63A |
| Outgoing | Max. Individual 63A |
| Provision for Incomer Slots | 8 Slots |
| Voltage Rating | 240/415V~ AC, 3 Phase / 4 Wire |
| Incoming Options | Three Phase MCB / RCCB / Isolator |
| Rotary Switch with Indicators | Three Selectors with R, Y, B Indicating Lights |
| Neutral Bar Terminal Capacity | 25 mm² |
| Earthing Bar Terminal Capacity | 25 mm² |
| Ingress Protection (IP) | IP43 |
| Rated Insulated Voltage (Ui) | 690V~ |
| Frequency | 50Hz |
| Di-electric Strength | 2.5KV |
| Ambient Temperature | -5° C to 40° C |
| Reference Standards | IS 8623; IS 13032 |
